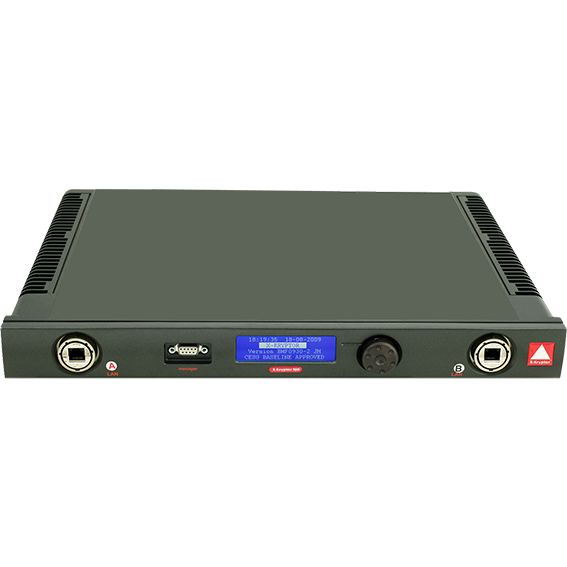

X-Kryptor Gateway

The Ultra Electronics AEP Networks X-Kryptor family of network security appliances allows secure connection between your organisation's sites and allows secure access for your remote users, protecting your data against external attack and disclosure of sensitive information

SKU: X-Kryptor 25-100-Lite Categories: ,

In today’s flexible working environment, many organisations find that allowing their employees to work part or full-time from home offers tremendous productivity benefits. Keeping your remote users connected to your network is critical, but for those users working with protectively marked or commercially sensitive documents, the security risks of using public networks, such as the Internet or mobile telephone networks, are often too great to justify.

The Ultra Electronics AEP Networks X-Kryptor family of network security appliances allows secure connection between your organisation’s sites and allows secure access for your remote users, protecting your data against external attack and disclosure of sensitive information

Features

  • Secure wired and wireless networks
  • Protects data in transit
  • Supports home and mobile working
  • Compatible with xDSL, Wi-Fi and 3G
  • Prevents unauthorised access to your network
  • Scalable for small and large organisations
  • Certified to CAPS Baseline Grade

X-Kryptor 25 Overview
The X-Kryptor 25 is designed for deployment in medium scale remote access projects and site to site WAN encryption projects.

Supporting 2000 AES encrypted tunnels the X-Kryptor 25 runs at 25 Mb/s. It uses the same operating environment as X-Kryptor 100 and provides the same high level of secuity protection. It is suitable for a 1U 19″ rack mounting.

X-Kryptor 25 has undergone independent security evaluation by the UK’s national technical authority for information Assurance – CESG – and is able to protect networks carrying RESTRICTED

Data Encryption Algorithms

  • AES (128, 192, 256 bit)
  • Diffie-Hellman Public Key Exchange
  • SHA-1 (FIPS PUB 180-1) Secure Hash Standard
  • DSA (FIPS PUB 186-2) Digital Signature Standard
  • X-Kryptor x509v3 Digital Certificate

Encryption Modes

  • Transport Mode
  • Tunnel Mode

Authentication

  • Includes RSA ACE Agent

Security Approvals

  • CESG Approved Products Scheme (CAPS) at Baseline
  • Defence Infosec Product Co-operation Group (DIPCOG)
  • Approval for UK Military (MOD) use.

Interfaces

  • Dual 100/10-TX Ethernet interfaces
  • 132 x 32 backlit LCD Display

Throughput

  • 25Mb/s full duplexDisplay

Regulatory Approvals

  • CE Mark
  • EMA – EMC55022 Class B
  • Safety – EN60950 (Low Voltage Directive)

Dimensions

  • W: Standard 19″ Rack mountable chassis
  • H: 1U
  • D: 311mm

Management

  • Browser based Management consoleRatings
  • 100-250V 60-60Hz
  • 0.5A – 1.5A

Environmental

  • Operating Temperature: 10[deg]c to 45[deg]c
  • Operating Humidity: (non-condensing) 30% to 90% RH

X-Kryptor 100 Overview
With the speed and scalability to take full advantage of your bandwidth, X-Kryptor 100 runs at over 100 Mb/s at full duplex and supports up to 5000 AES encrypted tunnel connections.

This system is designed for large remote access user communities and for protecting data traversing modern third party owned WAN links. It is suitable for a 1U 19″ rack mounting.

X-Kryptor 100 has undergone independent security evaluation by the UK’s national technical authority for information Assurance – CESG – and is able to protect networks carrying RESTRICTED information.

Data Encryption Algorithms
AES (128, 192, 256 bit)
Diffie-Hellman Public Key Exchange
SHA-1 (FIPS PUB 180-1) Secure Hash Standard
DSA (FIPS PUB 186-2) Digital Signature Standard
X-Kryptor x509v3 Digital Certificate

Encryption Modes

  • Transport Mode
  • Tunnel Mode

Authentication

  • Includes RSA ACE Agent

Security Approvals

  • CESG Approved Products Scheme (CAPS) at Baseline
  • Defence Infosec Product Co-operation Group (DIPCOG)
  • Approval for UK Military (MOD) use.

Interfaces

  • Dual 100/10-TX Ethernet interfaces

Throughput

  • 100Mb/s full duplex

Display

  • 132 x 32 backlit LCD Display

Regulatory Approvals

  • CE Mark
  • EMA – EMC55022 Class B
  • Safety – EN60950 (Low Voltage Directive)

Dimensions

  • W: Standard 19″ Rack mountable chassis
  • H: 1U
  • D: 311mm

Management

  • Browser based Management console

Ratings

  • 100-250V 60-60Hz
  • 0.5A – 1.5AEnvironmental
  • Operating Temperature: 10[deg]c to 45[deg]c
  • Operating Humidity: (non-condensing) 30% to 90% RH

X-Kryptor Lite Overview
X-Kryptor Lite is a secure VPN Gateway designed for use in SOHO networks that nevertheless require high standards of information assurance. The X-Kryptor Lite supports up to 25 devices on its restricted interface and communicates at 11 Mb/s.

It has a compact form factor to take up minimal space and runs silently with a low power consumption and heat emission.

X-Kryptor Lite has undergone independent security evaluation by the UK’s national technical authority for information Assurance – CESG – and is able to protect networks carrying RESTRICTED information.

Data Encryption Algorithms

  • AES (128, 192, 256 bit)
  • Diffie-Hellman Public Key Exchange
  • SHA-1 (FIPS PUB 180-1) Secure Hash Standard
  • DSA (FIPS PUB 186-2) Digital Signature Standard
  • X-Kryptor x509v3 Digital Certificate

Encryption Modes

  • Transport Mode
  • Tunnel Mode

Authentication

  • Includes RSA ACE Agent

Security Approvals

  • CESG Approved Products Scheme (CAPS) at Baseline
  • Defence Infosec Product Co-operation Group (DIPCOG)
  • Approval for UK Military (MOD) use.

Interfaces

  • Dual 100/10-TX Ethernet interfaces

Throughput

  • 11Mb/s full duplex

Licensing

  • 25 Users Maximum

Regulatory Approvals

  • CE Mark
  • EMA – EMC55022 Class B
  • Safety – EN60950 (Low Voltage Directive)

Dimensions

  • W: 265mmm
  • H: 55mm
  • D: 205mm
  • Weight: 1.3 Kg.

Management

  • Browser based Management consoleRatings

Rating

  • 100-250V 60-60Hz
  • 100-200 mA

Environmental

  • Operating Temperature: 0[deg]c to 40[deg]c
  • Operating Humidity: (non-condensing) 30% to 90% RH
